項目編號：E99

文件大?。?M

源碼說明：帶中文注釋

開發環境：C編譯器

簡要概述：

Simple Transceiver on SI4463 (HC-12)

Such a thing can be bought on the ebay. Soldering STM8, because can not reprogram it.

In repository:

• Project IAR for STM8S. Program for simple tx-rx data by uart.

• Project Wireless Development Suite (WDS) - Settings SI4463.

• STM8CubeMX Project + PDF

Corrected errors:

• Added folder Library

• Added buffer cleaning si4463 after receiving data (there were problems)

• Added comments and improved code

• Improved data reception from UART

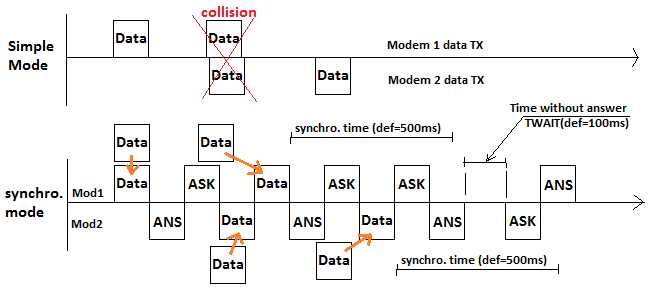

How to work sync mode:

If change flag SYNCHRO_MODE to 1 (in main.c), the program will synchronously receive and transmit data by uart. When the (by UART) appears in one data transmitter, it will begin to synchronize. This will protect against collisions. Synchronization time (500ms) can be changed.

In simple mode (SYNCHRO_MODE = 0), the transceiver is always in receive mode. When data appears by UART, it transmits (by RF) it and goes back to receive mode.

文件列表：

目錄│文件列表:

 └ STM8S003_AND_SI4463

    │ HC-12.jpg

    │ main.c

    │ main.h

    │ radio_config_Si4463.h

    │ radio_config_Si4463_433MHz.h

    │ readme.txt

    │ Release_Notes.html

    │ RfTransceiver.c

    │ RfTransceiver.h

    │ Si4463.c

    │ Si4463.h

    │ si4463_revb1_empty_framework ForHC-12.xml

    │ si4463_revb1_empty_framework ForHC-12_was.xml

    │ si446x_defs.h

    │ STM8S003 Cube.ioc8

    │ STM8S003 Cube.pdf

    │ stm8s_conf.h

    │ stm8s_it.c

    │ stm8s_it.h

    │ synchroMode.png

    ├ EWSTM8

    │  │ Backup of Project.ewd

    │  │ Backup of Project.ewp

    │  │ Project.dep

    │  │ Project.ewd

    │  │ Project.ewp

    │  │ Project.ewt

    │  │ Project.eww

    │  │ readme.txt

    │  ├ settings

    │  │  │ Project.dbgdt

    │  │  │ Project.dni

    │  │  │ Project.STM8S208.cspy.bat

    │  │  │ Project.STM8S208.driver.xcl

    │  │  │ Project.STM8S208.general.xcl

    │  │  │ Project.wsdt

    │  │  └ Project.wspos

    │  └ STM8S208

    │     └ Obj

    │        │ main.pbi

    │        │ main.pbi.cout

    │        │ Project.pbd

    │        │ Project.pbd.browse

    │        │ RfTransceiver.o

    │        │ RfTransceiver.pbi.cout

    │        │ Si4463.pbi

    │        │ Si4463.pbi.cout

    │        │ stm8s_adc1.pbi.cout

    │        │ stm8s_adc2.pbi

    │        │ stm8s_adc2.pbi.cout

    │        │ stm8s_awu.pbi

    │        │ stm8s_awu.pbi.cout

    │        │ stm8s_beep.pbi

    │        │ stm8s_beep.pbi.cout

    │        │ stm8s_can.pbi

    │        │ stm8s_can.pbi.cout

    │        │ stm8s_clk.pbi

    │        │ stm8s_clk.pbi.cout

    │        │ stm8s_exti.pbi

    │        │ stm8s_exti.pbi.cout

    │        │ stm8s_flash.pbi

    │        │ stm8s_flash.pbi.cout

    │        │ stm8s_gpio.pbi

    │        │ stm8s_gpio.pbi.cout

    │        │ stm8s_i2c.pbi

    │        │ stm8s_i2c.pbi.cout

    │        │ stm8s_it.pbi

    │        │ stm8s_it.pbi.cout

    │        │ stm8s_itc.pbi

    │        │ stm8s_itc.pbi.cout

    │        │ stm8s_iwdg.pbi

    │        │ stm8s_iwdg.pbi.cout

    │        │ stm8s_rst.pbi

    │        │ stm8s_rst.pbi.cout

    │        │ stm8s_spi.pbi

    │        │ stm8s_spi.pbi.cout

    │        │ stm8s_tim1.pbi

    │        │ stm8s_tim1.pbi.cout

    │        │ stm8s_tim2.pbi

    │        │ stm8s_tim2.pbi.cout

    │        │ stm8s_tim3.pbi

    │        │ stm8s_tim3.pbi.cout

    │        │ stm8s_tim4.pbi

    │        │ stm8s_tim4.pbi.cout

    │        │ stm8s_tim5.pbi.cout

    │        │ stm8s_tim6.pbi.cout

    │        │ stm8s_uart1.pbi

    │        │ stm8s_uart1.pbi.cout

    │        │ stm8s_uart2.pbi.cout

    │        │ stm8s_uart3.pbi

    │        │ stm8s_uart3.pbi.cout

    │        │ stm8s_uart4.pbi.cout

    │        │ stm8s_wwdg.pbi

    │        └ stm8s_wwdg.pbi.cout

    └ Libraries

       └ STM8S_StdPeriph_Driver

          │ Release_Notes.html

          │ stm8s-a_stdperiph_drivers_um.chm

          ├ inc

          │  │ stm8s.h

          │  │ stm8s_adc1.h

          │  │ stm8s_adc2.h

          │  │ stm8s_awu.h

          │  │ stm8s_beep.h

          │  │ stm8s_can.h

          │  │ stm8s_clk.h

          │  │ stm8s_exti.h

          │  │ stm8s_flash.h

          │  │ stm8s_gpio.h

          │  │ stm8s_i2c.h

          │  │ stm8s_itc.h

          │  │ stm8s_iwdg.h

          │  │ stm8s_rst.h

          │  │ stm8s_spi.h

          │  │ stm8s_tim1.h

          │  │ stm8s_tim2.h

          │  │ stm8s_tim3.h

          │  │ stm8s_tim4.h

          │  │ stm8s_tim5.h

          │  │ stm8s_tim6.h

          │  │ stm8s_uart1.h

          │  │ stm8s_uart2.h

          │  │ stm8s_uart3.h

          │  │ stm8s_uart4.h

          │  └ stm8s_wwdg.h

          └ src

             │ stm8s_adc1.c

             │ stm8s_adc2.c

             │ stm8s_awu.c

             │ stm8s_beep.c

             │ stm8s_can.c

             │ stm8s_clk.c

             │ stm8s_exti.c

             │ stm8s_flash.c

             │ stm8s_gpio.c

             │ stm8s_i2c.c

             │ stm8s_itc.c

             │ stm8s_iwdg.c

             │ stm8s_rst.c

             │ stm8s_spi.c

             │ stm8s_tim1.c

             │ stm8s_tim2.c

             │ stm8s_tim3.c

             │ stm8s_tim4.c

             │ stm8s_tim5.c

             │ stm8s_tim6.c

             │ stm8s_uart1.c

             │ stm8s_uart2.c

             │ stm8s_uart3.c

             │ stm8s_uart4.c

             └ stm8s_wwdg.c
