項目編號：P509

文件大?。?M

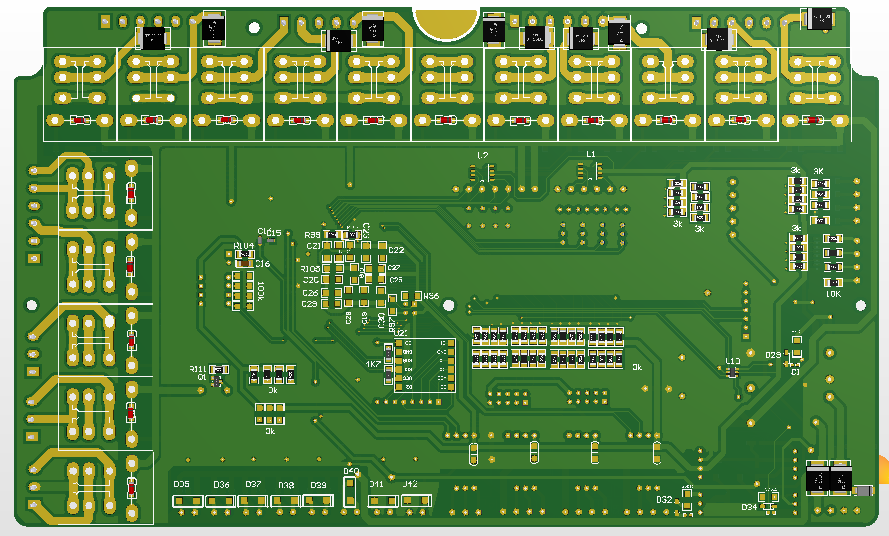

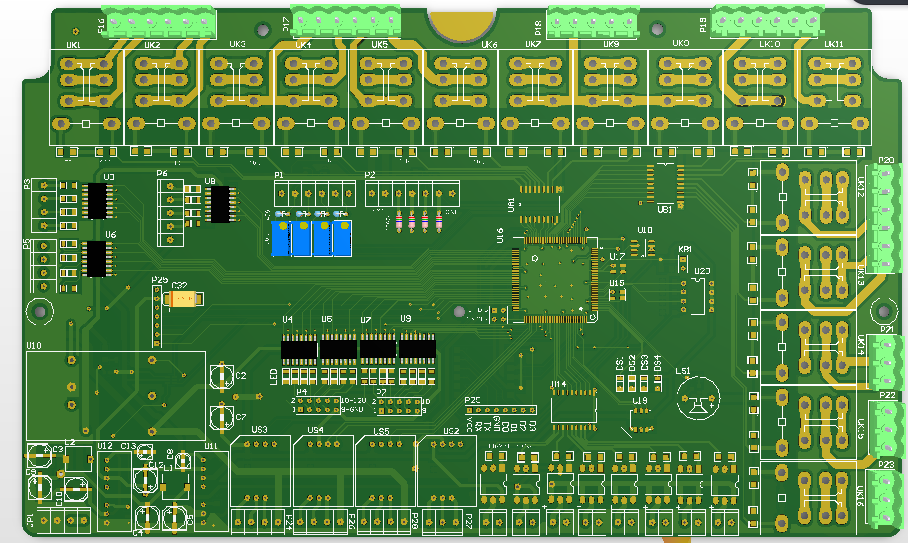

圖紙說明：PCB圖

開發(fā)環(huán)境：AD2020

簡要概述：

STM32F103ZET6，全隔離無線遙控控制6路繼電器，16路DI，4路AI，4路USART轉RS232，工控板

目錄│文件列表:

 └ Wireless-remote-control-16-relay-16-DI-4-AI-industrial-control-board

    ├ Docs

    │  │ bottomlayer.png

    │  │ STM32F103ZET6_HARDWARE.pdf

    │  └ toplayer.png

    └ STM32F103ZET6_HARDWARE

       │ ADC.SchDoc

       │ ENCODER_Ctrl.SchDoc

       │ POWER.SchDoc

       │ POWER_Ctrl.SchDoc

       │ RELAY_Ctrl.SchDoc

       │ STM32F103ZET6_HARDWARE.PcbDoc

       │ STM32F103ZET6_HARDWARE.PcbDoc.htm

       │ STM32F103ZET6_HARDWARE.PrjPcb

       │ STM32F103ZET6_HARDWARE.PrjPcbStructure

       │ STM32F103ZET6_HARDWARE.SchDoc

       │ STM32_CPU.SchDoc

       │ UART_Ctrl.SchDoc

       └ Wireless.SchDoc
