項目編號：P219

文件大小：11M

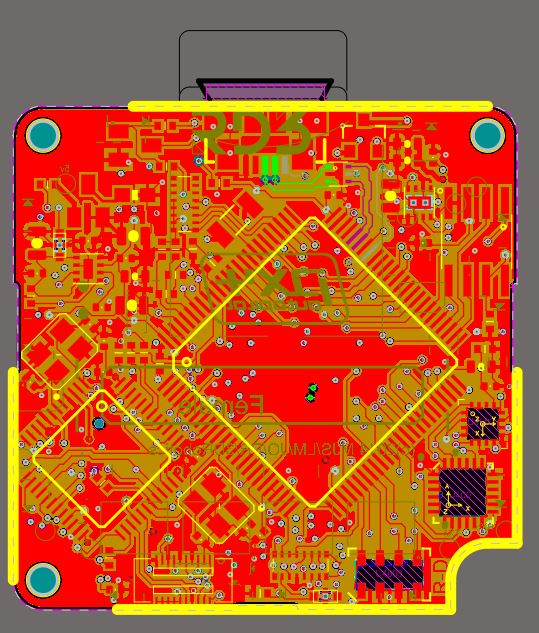

圖紙說明：PCB圖

開發環境：AD2020

簡要概述：

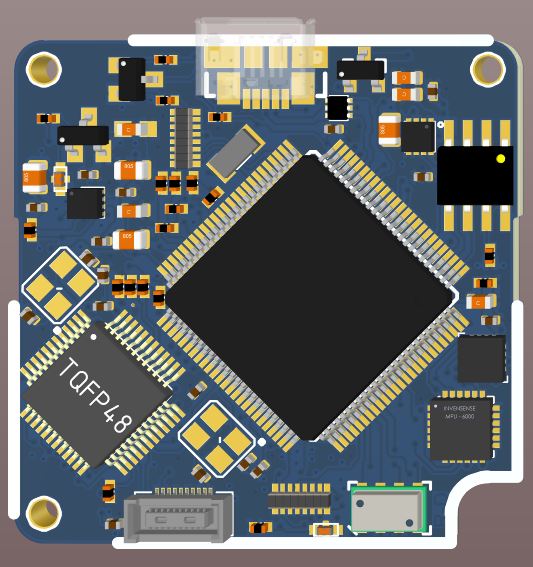

PX4開源飛控原理圖PCB，非常好的硬件學習資料，歡迎下載學習溝通

目錄│文件列表:

 └ FMUv3_REV_D

    │ 80PIN_FMU3_REV_C.SchDoc

    │ CHANGE_FMU3_REV_C.SchDoc

    │ CHANGE_FMU3_REV_D.SchDoc

    │ FMU.OutJob

    │ FMU3_REV_D.PcbDoc

    │ FMU3_REV_D.PcbDoc.htm

    │ FMU3_REV_D.PcbLib

    │ FMU3_REV_D.PrjPcb

    │ FMU3_REV_D.PrjPcbStructure

    │ FMU3_REV_D.SCHLIB

    │ FMU_FMU3_REV_C.SchDoc

    │ FMU_Power_FMU3_REV_C.SchDoc

    │ IO_FMU3_REV_C.SchDoc

    │ IO_PWR_FMU3_REV_C.SchDoc

    │ LEDs_FMU3_REV_C.SchDoc

    │ PWM_PPM_FMU3_REV_C.SchDoc

    │ SD_USB_FMU3_REV_C.SchDoc

    │ SENSORS_FMU3_REV_C.SchDoc

    │ SERIAL_FMU3_REV_C.SchDoc

    ├ BOM

    │  └ Bill of Materials-FMU3_REV_D(FMU3_REV_D).xlsx

    ├ PCB 3D Print

    │  │ PCB 3D Print from Above.PDF

    │  └ PCB 3D Print from below.PDF

    ├ PCB Print

    │  └ Assembly.PDF

    ├ Report Board Stack

    │  └ Report Board Stack.PDF

    └ Schematic Print

       └ Schematic Prints.PDF
